Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle
    Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle
    Purchase Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle
    Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle SKU #: B10141 Not Rated Yet

    Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle

    $13.22 - $14.16 Per Bundle
    1
    $-.--
    1
    $-.--
    2
    $-.--
    Total: $0.00
    HardwareSource - Checkmark In Stock  & Ships by the next day!

    Overview

    • Full cranked soft-close hinge bundle for frameless cabinets with inset doors.
    • With these hinges, the soft-close mechanism is integrated into the hinge cup providing a very low profile design.
    • This hinge can be used for new construction or to replace worn out or obsolete Grass full cranked hinges that open approximately 110 degrees.
    • This hinge is available with either 42mm (1-5/8") or 45mm (1-3/4") screw hole spacings for the hinge cup. Screw holes are measured from center to center (center of one hole to the center of the other hole). See the document found under Downloads to view a diagram showing the screw hole spacing.
    • Please see the "Reveal Information" document below to verify if this bundle will work for your application and determine which mounting plate is needed.

    Features

    • A soft close feature which eliminates the slamming door sound that you get with typical self-closing European hinges.
      • This hinge has a lever one the back that adjusts the soft close speed by choosing one of three different closing pressure settings.
      • The soft close mechanism is fully integrated into the hinge arm rather than the hinge cup.
    • Four different adjustments
      • Soft close pressure
      • Depth adjustment (+3mm and -2mm)
      • Side adjustment / Overlay (+2mm and -2mm)
      • Height adjustment (+2mm and -2mm)
      • See the document found under Downloads for information on how to adjust

    Details

    • Hinge cup size is 35mm (1-3/8"). Cup depth is 12.6mm (1/2").
    • Door opening angle is 110 degrees
    • Works for bore distances from 3mm (1/8") to 7mm (9/32")
    • Works for door thicknesses from 16mm (5/8") to 24mm (15/16")

    What's Included

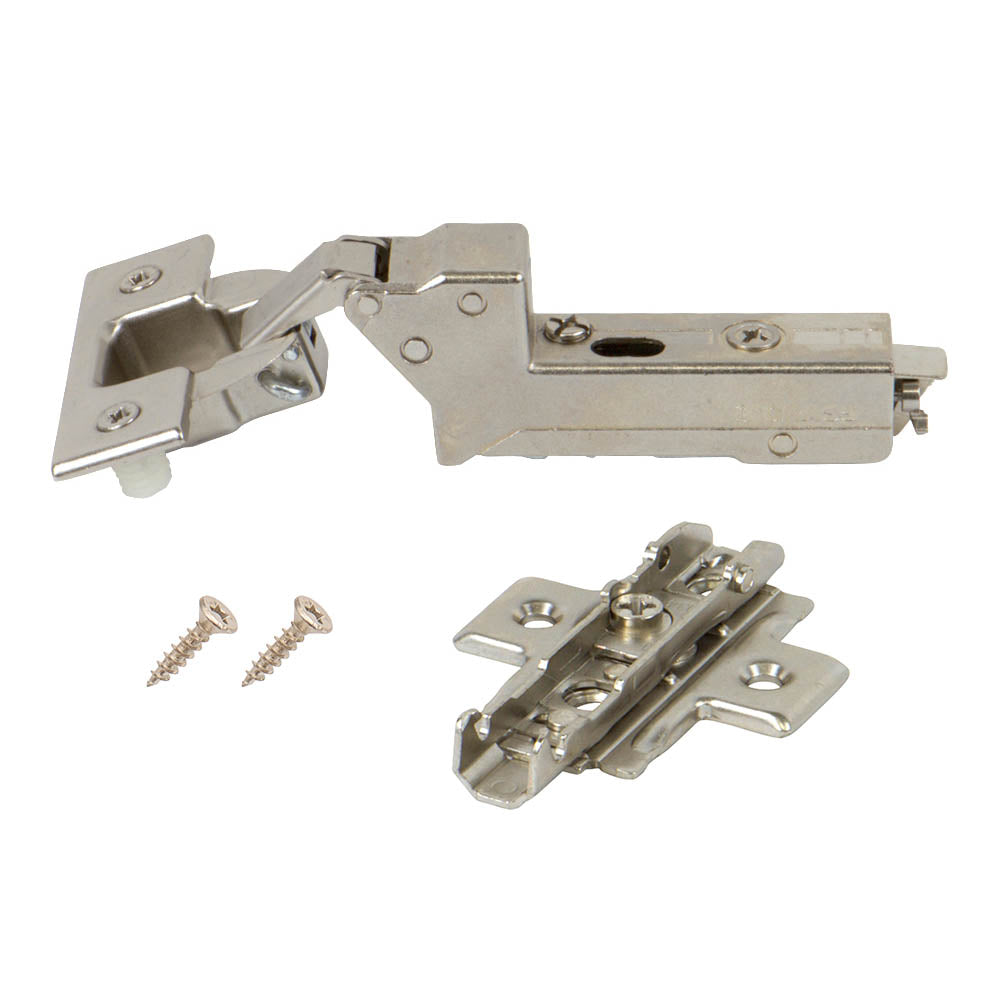

    • 1 x Grass Tiomos Full Cranked Soft-Close Hinge
    • 1 x Frameless Mounting Plate (three options available depending on desired reveal and bore distance)
    • 2 x #6 Screws for the Mounting Plate
    • 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).

    Available for purchase separately:

    • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
    • #6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
    • Restriction clip. Limits angle of opening to 85 degrees (SKU 701349)
    • 35mm Forstner Bit, for new installations (SKU 204000)
    Grass
    42mm Hinge: F028138344
    45mm Hinge: F028138526
    0mm Plate: F058139746
    2mm Plate: F058139747
    3mm Plate: F058139748
    Nickel
    Steel
    Flush Inset
    Yes
    Yes
    Clip-On
    110 Degrees
    35
    Yes
    Two plastic dowels and dowel screws for the hinge cup and two #6 screws for the mounting plate.
    Prop 65 Warning
    You're reviewing Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle
    Rate Product
    No Reviews Yet

    1 Question asked about Grass Soft-Close Hinge for Frameless Inset Cabinets - Bundle

    Q Robert Broderick • 07/10/2018, 3:30:42 AM I need two replacement Grass Inset hinges. How do I measure the OLD mounting plates to find out if I need the 0, 1, 2mm mounting plates????
    A 07/10/2018, 8:40:39 AM Hi Robert! You can measure the Bore Distance which is how far from the edge of the door that the hinge cup starts at. Then reference this information on Reveal for the inset door to determine which size mounting plate you need. https://www.hardwaresource.com/amfile/file/download/file_id/2485/product_id/10236/
