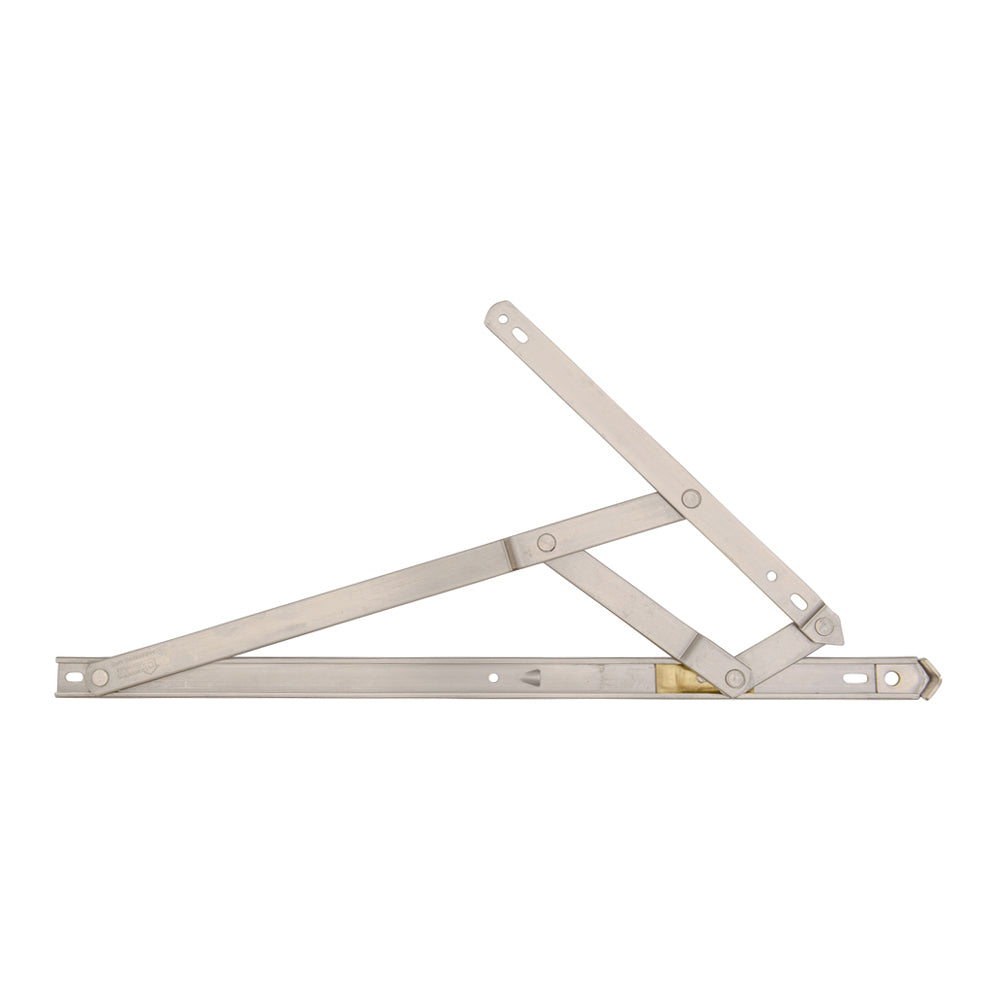

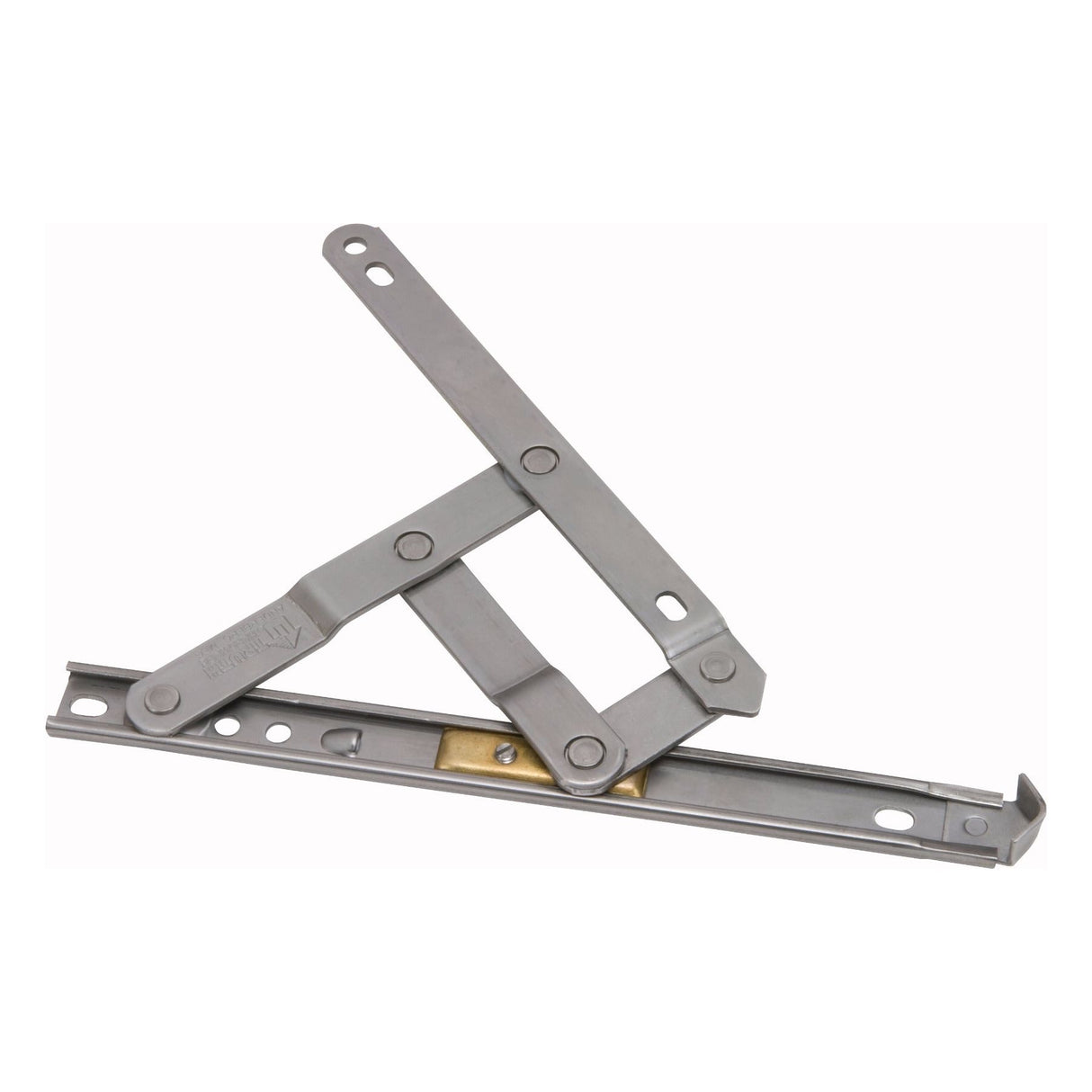

Truth Stainless Steel 4 Bar Hinge (201 Series)
Couldn't load pickup availability
Description
Description
- Designed for residential projects requiring relatively light window sections.
- Maximum weight of 40lbs depending on model. See spec sheet for exact weight limits.
- Truth 201 Series 4 Bar Standard Duty Window Hinges, for casement or awning windows and for projected vents with a lip on the outside edge.
- 4 Bar Hinges are designed to project the sash out as it pivots to avoid interference between a lipped vent and frame.
- These hinges are non-handed, they work on both left and right opening windows. Arm swings in both directions so the hinge can be used in either hand.
- Features set screw friction adjustment.
- These hinges also feature a "stop"; opening angle limited to approximately 55° (Click on link for specifics).
- Note: Model sizes listed are nominal sizes. For the actual length of the hinge, click on link.
- Each hinge uses #10 Pan Head Stainless Steel Screws (not included, see related products).
- See "Dimensions & More" under Downloads to determine the number of screws needed per hinge.
- Hinges are sold by the each. Order two hinges per window.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10498
-
Manufacturer
-
Finish Name
-
MaterialStainless Steel (304), Brass
-
Window TypeAwning Windows, Casement Windows
-
Mounting Hardware Included
-
Mounting Hardware Type
