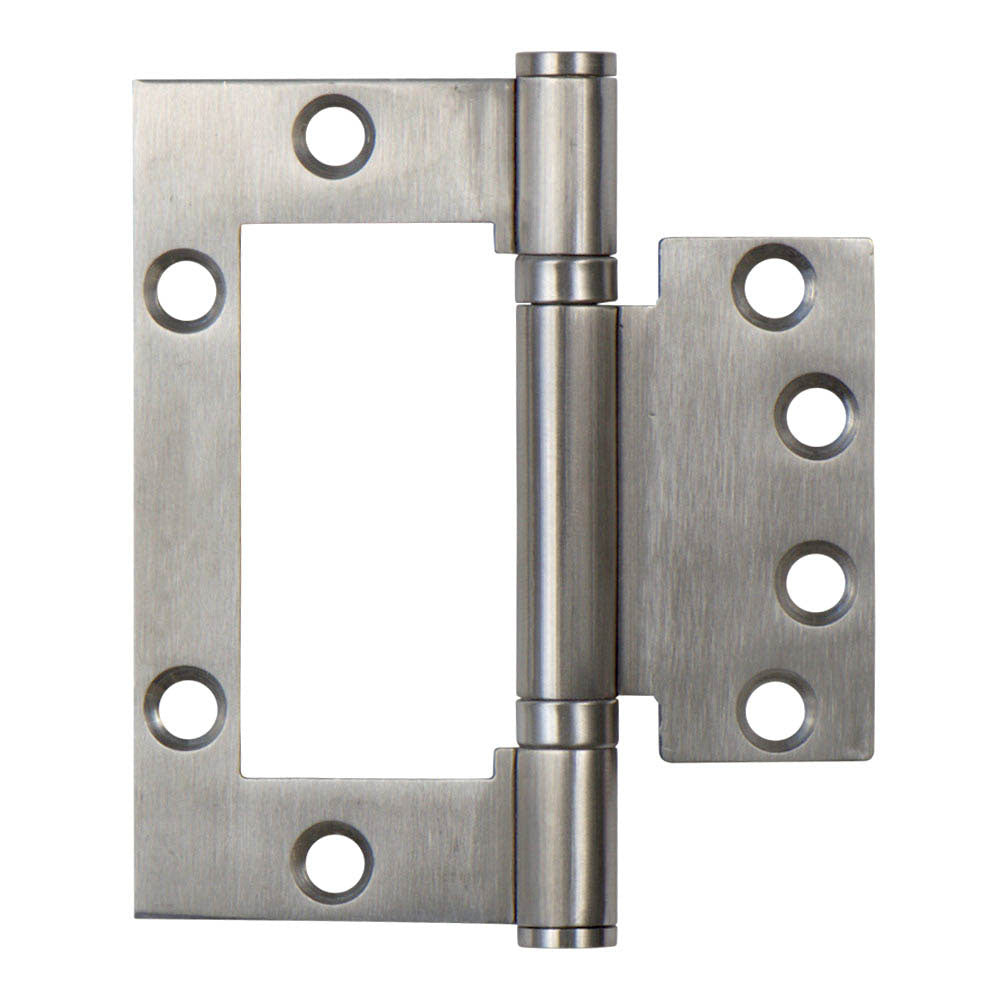

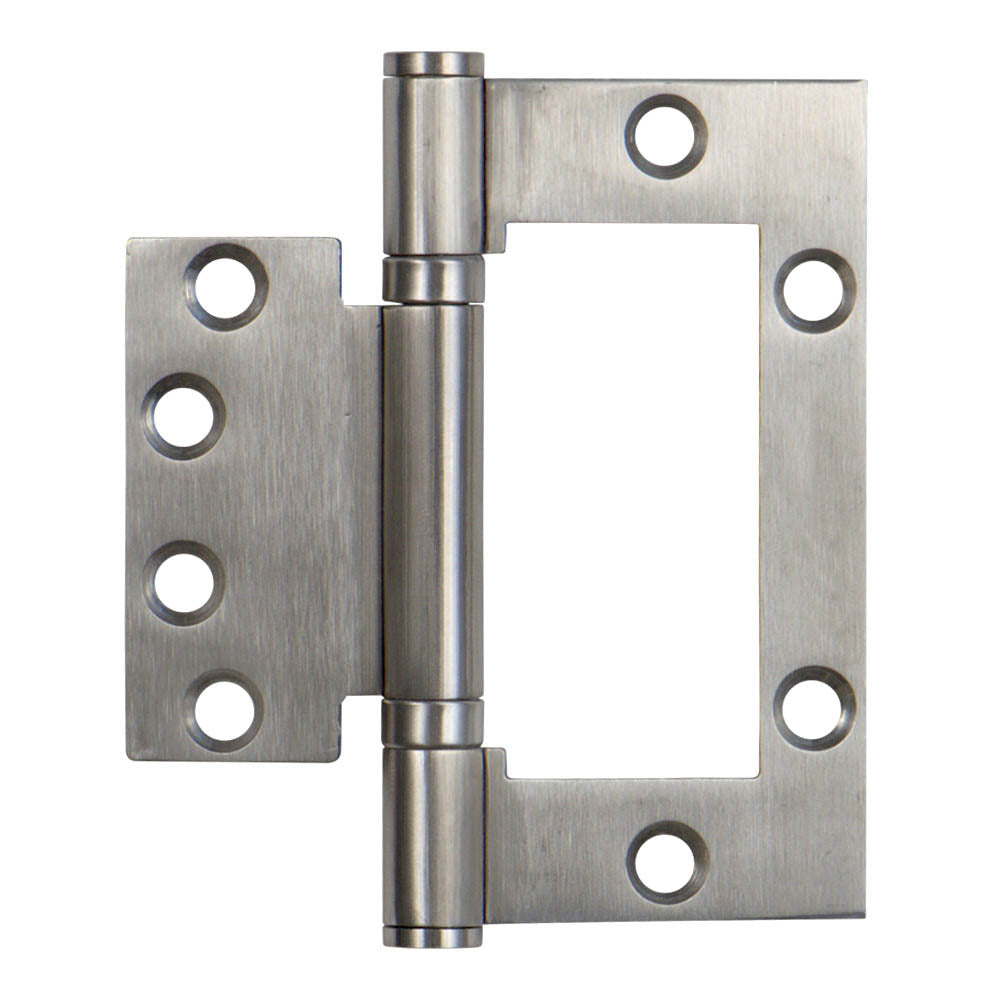

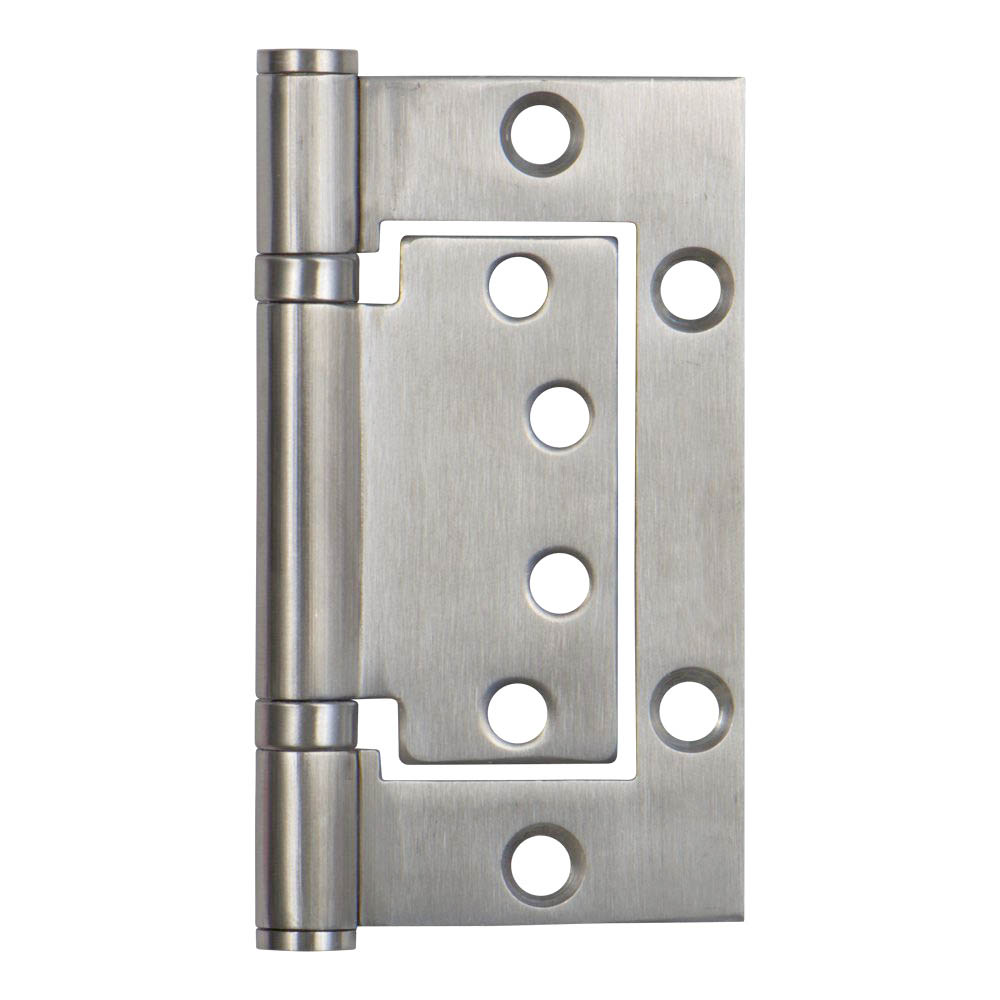

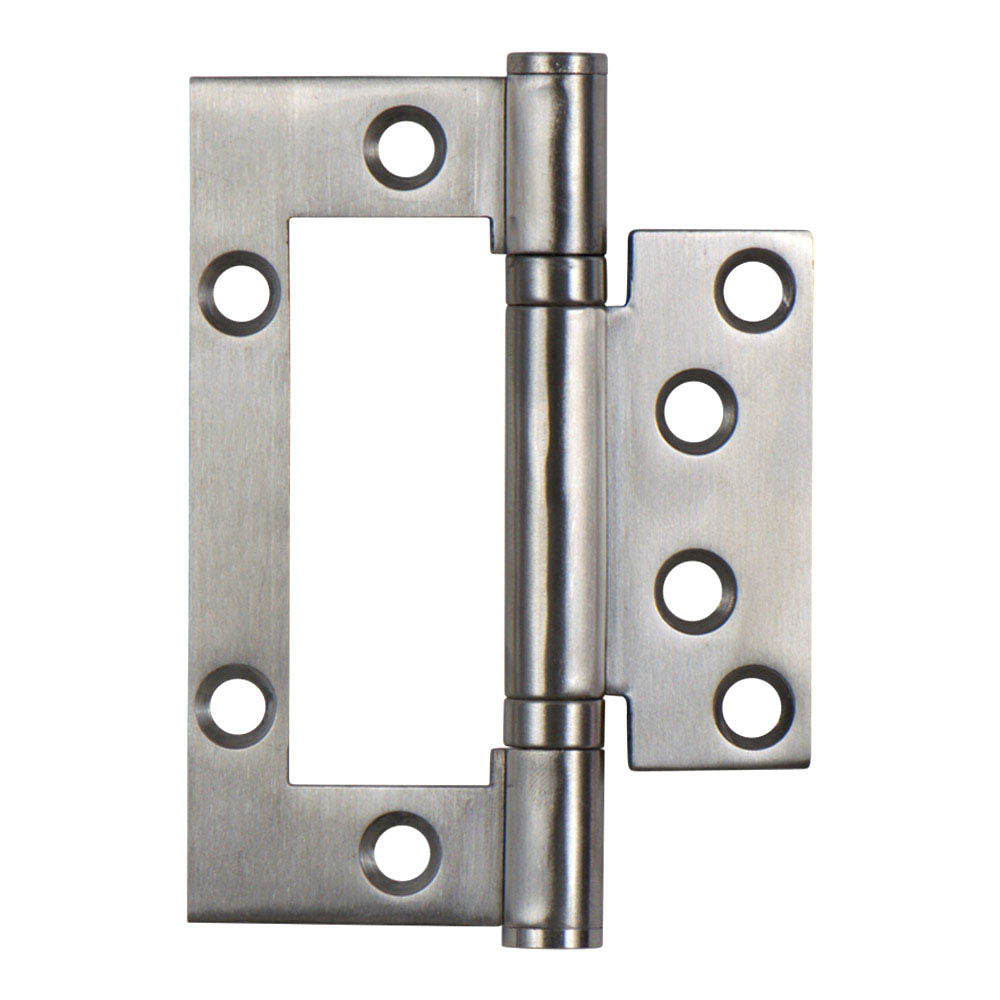

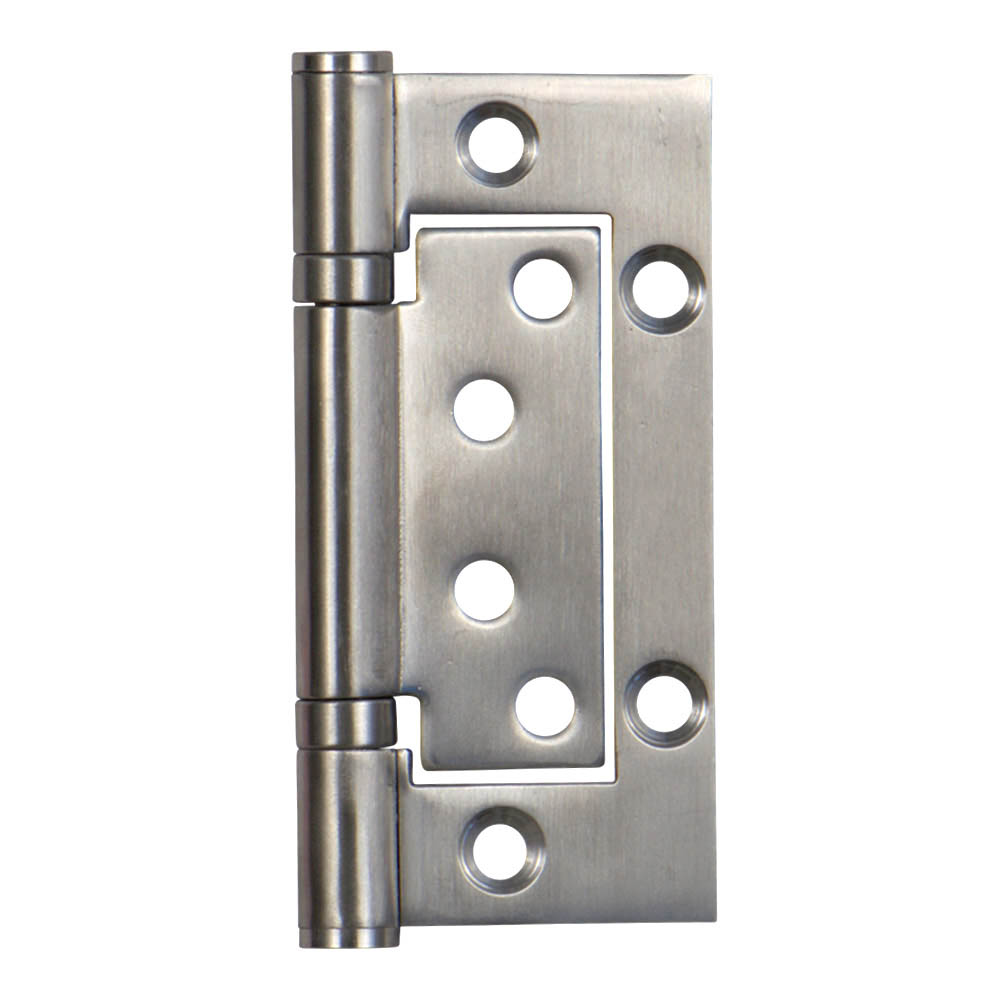

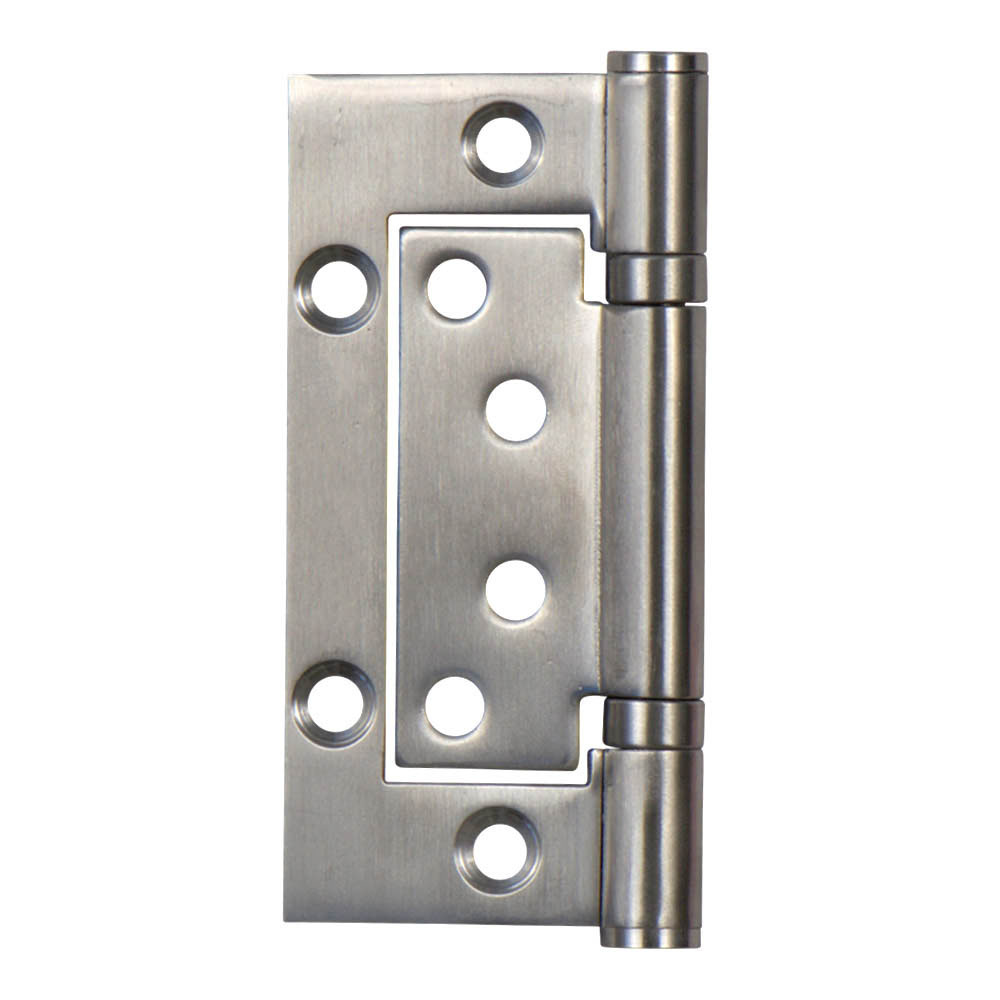

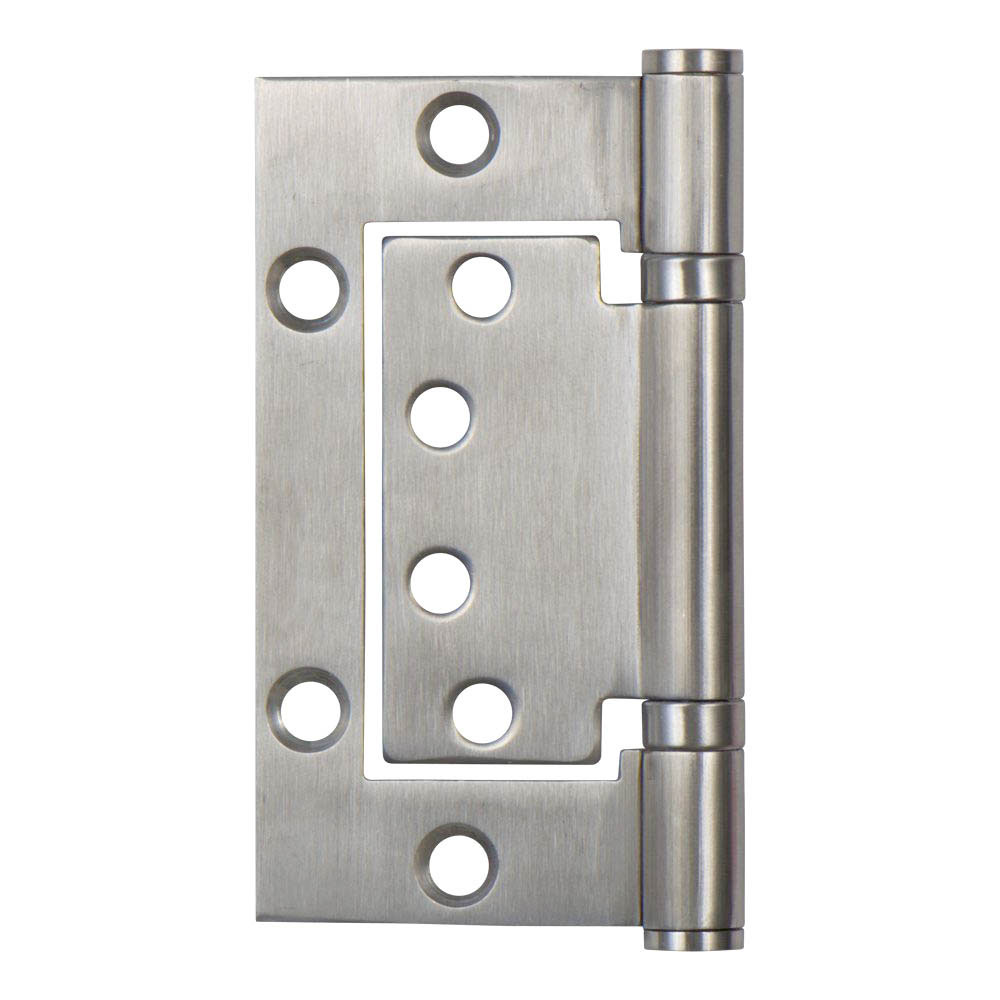

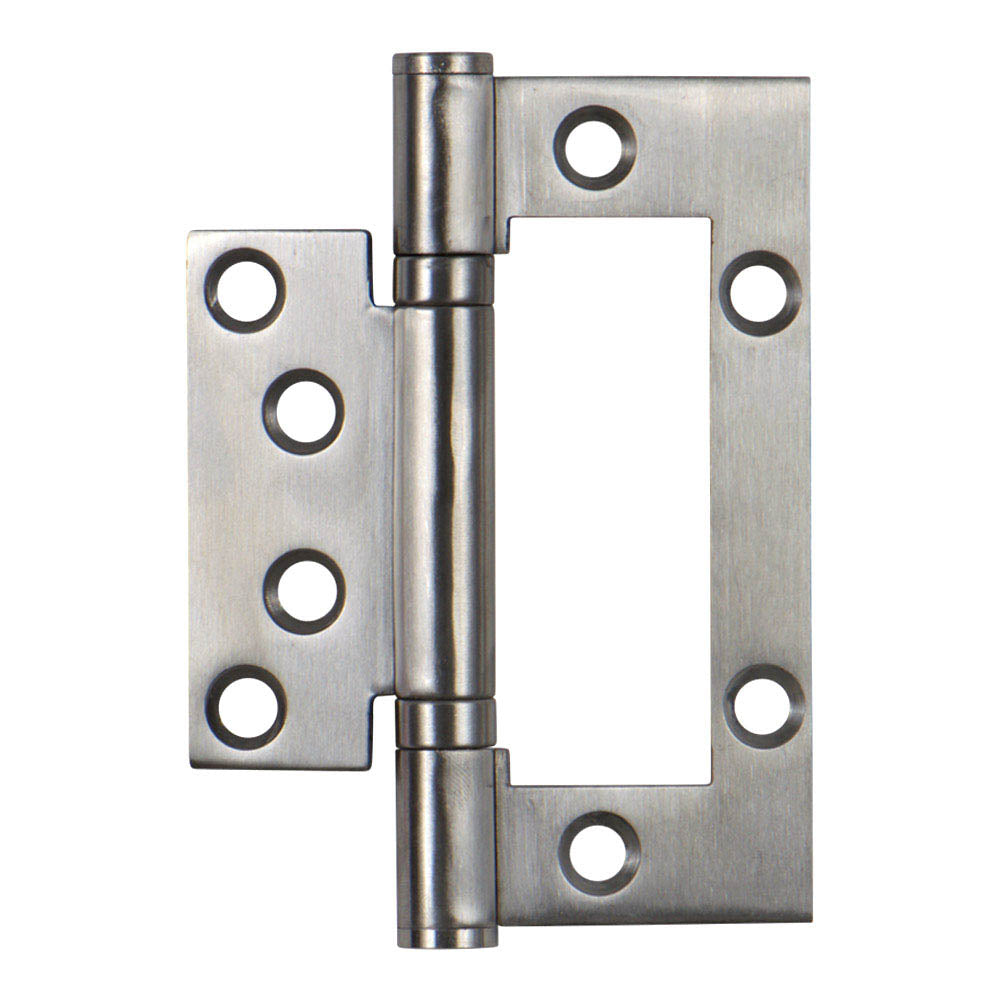

Stainless Steel No Mortise Hinge for Full Size Doors
Couldn't load pickup availability
Description
Description
- 1-3/4" Door Hinge, the outside leaf measures 4" tall x 1-7/8" wide not includuing the barrel and the inside leaf measures 2-1/2" tall x 1-1/4" wide not including the barrel.
- 1-3/8" Door Hinge, the outside leaf measures 4" tall x 1-1/2" wide not including the barrel and the inside leaf measures 2-1/2" tall x 1" wide not including the barrel.
- Ball bearing no-mortise hinge.
- This hinge does not require mortising of the door or the frame.
- After installation there will be only a 3/32" gap between the door and frame.
- The ball bearings are made of stainless steel.
- Hinge pin is removable.
- There is a small hole in the bottom hinge pin cap. The hinge pin can be removed by driving it out with a drive pin punch, or in a pinch... use a nail.
- Raceways are sealed so ball bearings will not deploy when hinge pin is removed.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10451
-
Finish Name
-
MaterialStainless Steel (304)
-
Door Thickness
-
Height
-
Material Thickness
-
Mounting Hardware Included
-
Mounting Hardware Type
