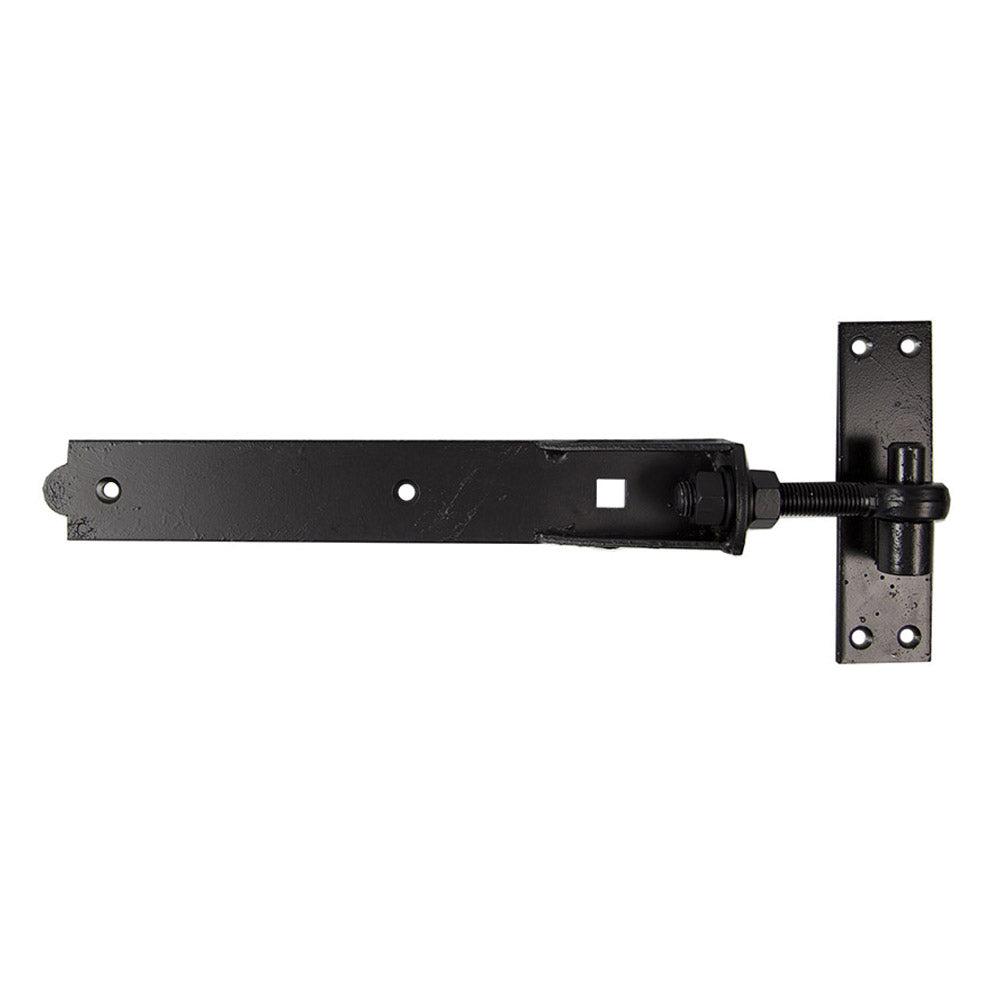

Heavy Duty Adjustable Band and Pintle Strap Hinge
Couldn't load pickup availability
Description
Description
- Heavy duty pintle type strap hinge for gates and doors.
- Door or gate can be lifted off after installation.
- This hinge is adjustable horizontally. There is a 2" range of adjustment after installation
- This hinge is sold by the pair. There are two hinges in a pair.
Details
- Pintle plate measurements:
- Pintle plate is 6-1/2" tall by 2-1/4" wide by 3/16" thick.
- Pintle is 3/4" diameter by 1-1/2" tall.
- Projection is approximately 2-1/4".
- Straps are made from 3/16" thick heavy duty steel and have welded diagonal plates at the post end for additional strength. Straps are 2-3/16" tall. Projection at post end is approximately 2".
- Available in four strap lengths. Listed weight ratings are per pair of hinges:
- 12 Inch Strap Model: Actual strap length is 11". 110 lb per pair weight rating
- 14 Inch Strap Model: Actual strap length is 13". 110 lb per pair weight rating
- 18 Inch Strap Model: Actual strap length is 17". 160 lb per pair weight rating
- 24 Inch Strap Model: Actual strap length is 22-1/2". 200 lb per pair weight rating
