SKU: 796611, 796612, 344204

Aximat Full Overlay 270 Degree Hinge, Black

$1460 Each

Description

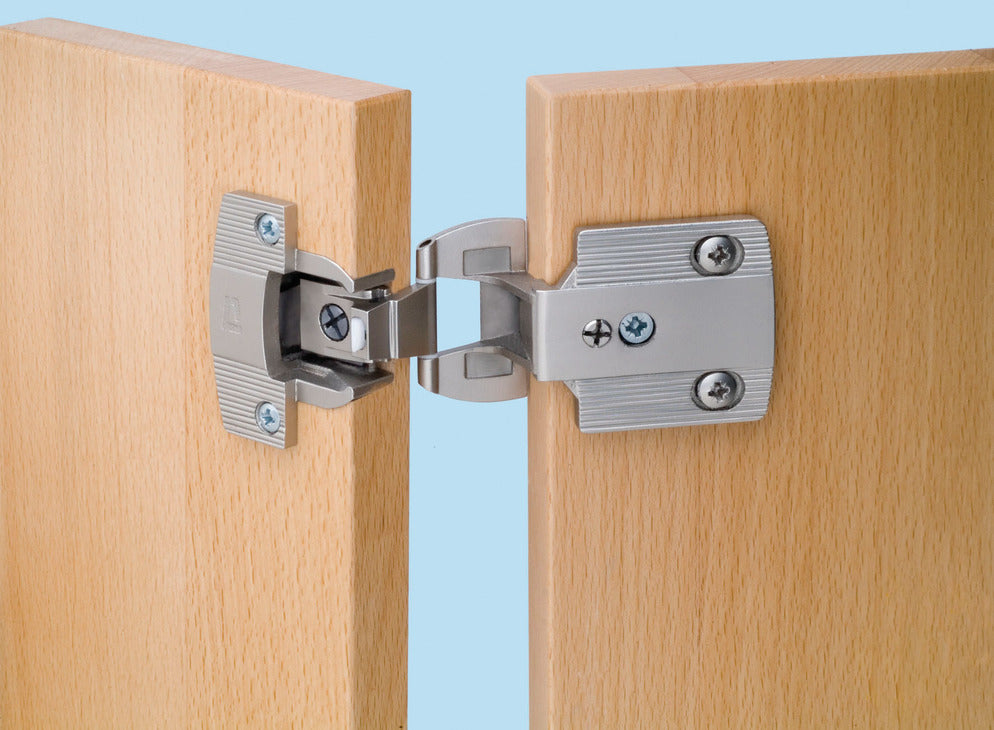

  • This is the new style Aximat hinge for full overlay doors. It replaces the old style Aximat hinge which is no longer available.

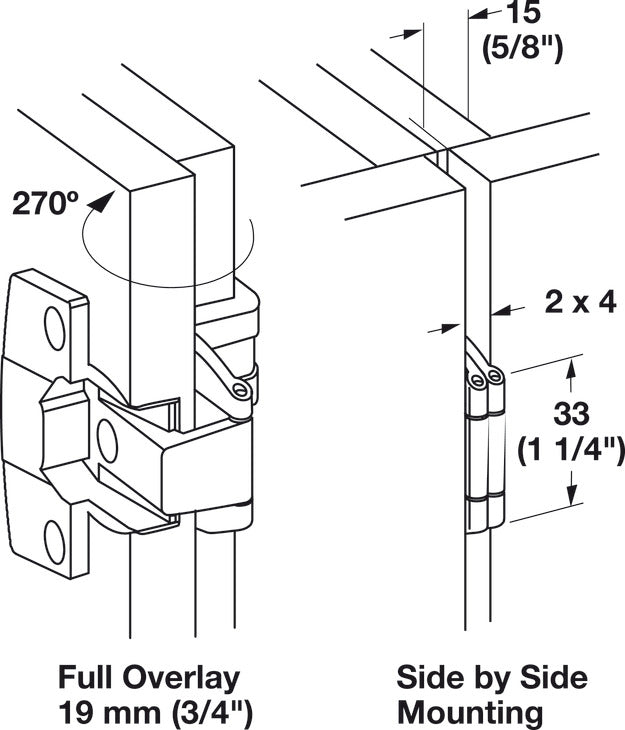

  • For cabinets with 3/4" (19mm) thick door and 3/4" (19mm) thick side panel.
  • Installs in a 35mm cup drilled in the back of the door.
  • Door overlay will be 19mm (3/4"), full overlay.
  • Hinge allows door to be free swinging and has an internal snap catch which holds the door in the closed position.

Notes

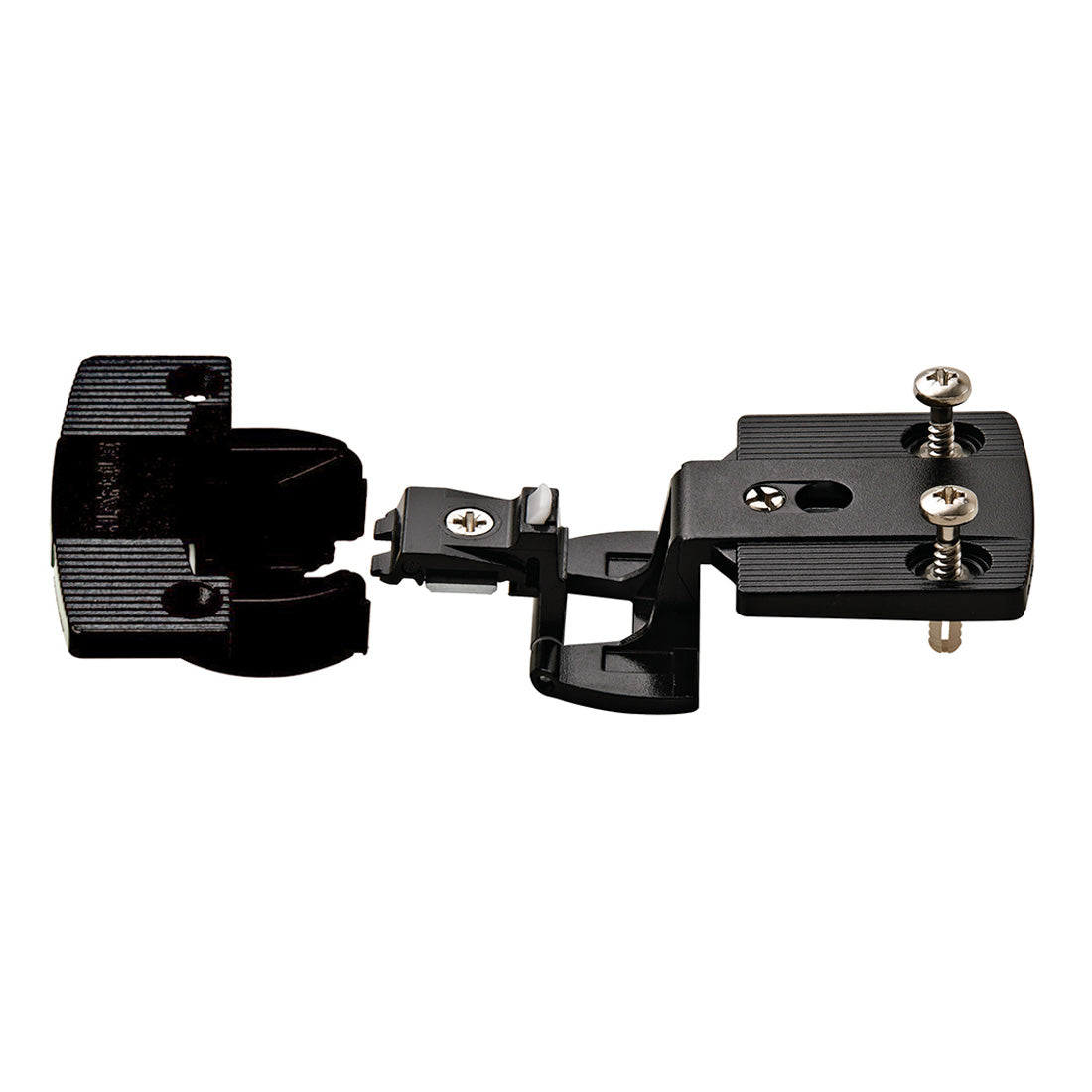

  • A single hinge is made up of two separate parts which snap together to become the hinge.
  • Each arm side comes with two screws and two plastic dowels which are sized for a 5mm (3/16") hole. The cup side of the hinge uses two #6 flat-head screws.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10000

  • Finish Name
    Black
  • Material
    Cast Metal
  • Cabinet Door Type
    Full Overlay
  • Soft Close
    No
  • Self-Closing
    No
  • Plate Connection Type
    Clip-On
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type

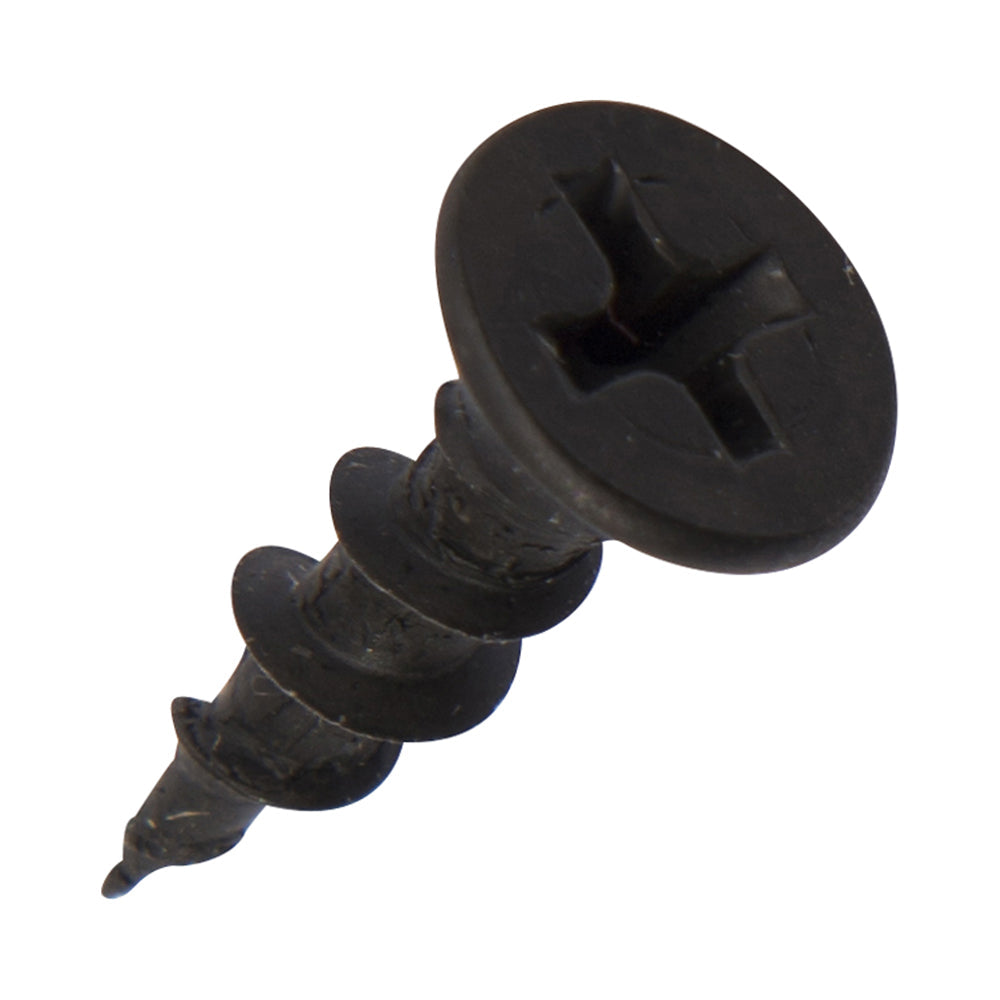

    Two #6 x 1/2" Flat Head Wood Screws
